LOAD CELLS

An electrical signal that can be measured and standardised is produced when a force, such as tension, compression, pressure, or torque, is converted into a load cell. A load cell is a transducer that transforms force into an electrical output that can be measured. Even so, there are numerous load cell variations. An electrical signal is produced by a load cell when a load or force is applied to it.

ADI SINGLE POINT PLATFORM LOAD CELL ASP-641

Price: 3500.00 - 3750.00 INR /Piece

  • Price Range 3500.00 - 3750.00 INR
  • Application Platform Scales ,Bag Weighing, Check Weighing, Industrial Automation, Universal Testing Applications, Conversion of mechanical scale, Tank, Bag weighing
  • Compensated Temperature -10 to 60 Celsius (oC)
  • Delivery Time 2 Week
  • Dimension (L*W*H) 200 x 40 x 50 Millimeter (mm)
  • Main Domestic Market All India
  • Main Export Market(s) Asia, Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Central America
  • Material Electroless Nickel Plated Tool Steel
  • Minimum Order Quantity 1
  • Operating Temperature -10 to 60 Celsius (oC)
  • Operating Voltage 10VDC-Maximum 15 VDC Volt (V)
  • Output Analog Sensor
  • Output Voltage 3 mV/V Volt (V)
  • Product Type STRAIN GAUGE BASED LOAD CELL
  • Supply Ability 20000 Per Month
  • Theory Resistance Sensor
  • Type SINGLE POINT PLATFORM LOAD CELL
  • Unit of Measure Piece/Pieces
  • Unit of Price Piece/Pieces
  • Usage INDUSTRIAL
  • Voltage 10VDC-Maximum 15 VDC Volt (v)
ASP-641 is a high accuracy, low profile platform load cell an ideal solution for medium size platform scales.

ADI Load Cell Junction Box

Price: 1500 INR /Piece

  • Color Golden
  • Delivery Time 1 Week
  • Main Domestic Market All India
  • Material Other
  • Minimum Order Quantity 50
  • Payment Terms Cash in Advance (CID)
  • Price 1500 INR
  • Product Type ADI Load Cell Junction Box
  • Supply Ability 8000 Per Month
  • Unit of Measure Piece/Pieces
  • Unit of Price Piece/Pieces
  • Usage Industrial

Supported ourselves with proficient amenities, we are engaging a premium range of ADI-308 Load Cell Junction Box. It connects numerous load cells to one signal which is then read by the terminal. Moreover, provided box is used in scales with more than one load cell. ADI-308 Load Cell Junction Box is mostly suitable in the weighing industry. It helps to prevent overfilling or running out of product. It is specially design to connect many load cells easily with single amplifier.

Adi Platform Jumbo Load Cell Asp-681

Price: 5000.00 - 5250.00 INR /Piece

  • Price Range 5000.00 - 5250.00 INR
  • Application Platform Scales ,Bag Weighing, Check Weighing, Industrial Automation, Universal Testing Applications, Conversion of mechanical scale, Tank, Bag weighing
  • Compensated Temperature -10 to 60 Celsius (oC)
  • Delivery Time 2 Week
  • Dimension (L*W*H) 190*75*75 Millimeter (mm)
  • Main Domestic Market All India
  • Main Export Market(s) Australia, South America, Western Europe, Middle East, Africa, Asia, Central America, Eastern Europe, North America
  • Material Electroless Nickel Plated Tool Steel
  • Minimum Order Quantity 1
  • Operating Temperature -10 to 60 Celsius (oC)
  • Operating Voltage 10VDC-Maximum 15 VDC Volt (V)
  • Output Analog Sensor
  • Output Voltage 3 mV/V Volt (V)
  • Product Type STRAIN GAUGE BASED LOAD CELL
  • Supply Ability 10000 Per Month
  • Theory Resistance Sensor
  • Unit of Measure Piece/Pieces
  • Unit of Price Piece/Pieces
  • Usage INDUSTRIAL
  • Voltage 10VDC-Maximum 15 VDC Volt (v)



Adi Shear Beam Load Cell Asb-331

Price: 2500.00 - 7500.00 INR /Piece

  • Price Range 2500.00 - 7500.00 INR
  • Application Industrial Automation , Universal Testing Applications, Conversion of mechanical scale , Tank, Bag weighing
  • Compensated Temperature -10 to 60 Celsius (oC)
  • Delivery Time 3 Week
  • Main Domestic Market All India
  • Main Export Market(s) Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Central America, Asia
  • Material Electroless Nickel Plated Tool Steel
  • Minimum Order Quantity 1
  • Operating Temperature -10 to 60 Celsius (oC)
  • Operating Voltage 10VDC-Maximum 15 VDC Volt (V)
  • Output Analog Sensor
  • Payment Terms Cash Advance (CA)
  • Product Type STRAIN GAUGE BASED LOAD CELL
  • Supply Ability 10000 Per Month
  • Theory Resistance Sensor
  • Unit of Measure Piece/Pieces
  • Unit of Price Piece/Pieces
  • Usage INDUSTRIAL
  • Voltage 10VDC-Maximum 15 VDC Volt (v)
ASB-331 is a high accuracy, low profile single ended shear beam load cell suitable for Tank & Hopper Weighing.

ADI PLATFORM LOAD CELL ASP-631

Price: 2500.00 - 2750.00 INR /Piece

  • Price Range 2500.00 - 2750.00 INR
  • Application Platform Scales ,Bag Weighing, Check Weighing, Industrial Automation, Universal Testing Applications, Conversion of mechanical scale, Tank, Bag weighing
  • Color Silver
  • Compensated Temperature -10 to 60 Celsius (oC)
  • Delivery Time 2 Week
  • Dimension (L*W*H) 150 x 40 x 40 Millimeter (mm)
  • Main Domestic Market All India
  • Main Export Market(s) Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Central America, Asia
  • Material Electroless Nickel Plated Tool Steel
  • Minimum Order Quantity 1
  • Operating Temperature -10 to 60 Celsius (oC)
  • Operating Voltage 10VDC-Maximum 15 VDC Volt (V)
  • Output Analog Sensor
  • Output Voltage 3 mV/V Volt (V)
  • Product Type STRAIN GAUGE BASED LOAD CELL
  • Supply Ability 20000 Per Month
  • Theory Resistance Sensor
  • Unit of Measure Piece/Pieces
  • Unit of Price Piece/Pieces
  • Usage INDUSTRIAL
  • Voltage 10VDC-Maximum 15 VDC Volt (v)
ASP-631 is a high accuracy, low profile platform load cell ideal solution for smaller size platform scales.

ADI SHACKLE TYPE S BEAM LOAD CELL

Price: 5000 INR /Piece

  • Application Shackle Type S Beam Load Cell is precision universal type Load Cell , used in hanging type weighing, universal testing, process & machine automation and line tension measurement.
  • Color EN-24 NICKLE PLATED ALLOY STEEL
  • Compensated Temperature 10 To 60 Celsius (oC)
  • Delivery Time 1 Week
  • Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Material EN-24 NICKLE PLATED ALLOY STEEL
  • Minimum Order Quantity 01
  • Output Analog Sensor
  • Payment Terms Cash Advance (CA), Cash in Advance (CID)
  • Price 5000 INR
  • Product Type Shackle Type S Beam Load Cell
  • Supply Ability 150000 Per Year
  • Theory Resistance Sensor
  • Unit of Measure Piece/Pieces
  • Unit of Price Piece/Pieces
  • Usage Applications for this load cell are compression testing, tablet hardness testing, impact force testing, low profile floor scale, tank & silo weighing, robotics & automation.
ASS-231 ADI Shackle Type S Beam Load Cell is precision universal type Load Cell , used in hanging type weighing, universal testing, process & machine automation and line tension measurement. It is hermetically sealed with laser welded gaging cavity. It is constructed from high tensile tools steel for ruggedness and harsh industrial applications. Its design is strain gage based with full temperature compensation over 0 to 60C range.

Adi S-type Load Cell Ast-221

Price: 2500.00 - 7500.00 INR /Piece

  • Price Range 2500.00 - 7500.00 INR
  • Application Industrial Automation Universal Testing Applications Conversion of mechanical scale Tank, Bag weighing
  • Compensated Temperature -10 to 60 Celsius (oC)
  • Delivery Time 3 Week
  • Main Domestic Market All India
  • Main Export Market(s) Australia, North America, South America, Eastern Europe, Western Europe, Africa, Central America, Asia
  • Material Electroless Nickel Plated Tool Steel
  • Minimum Order Quantity 1
  • Operating Temperature -10 to 60 Celsius (oC)
  • Operating Voltage 10VDC-Maximum 15 VDC Volt (V)
  • Product Type STRAIN GAUGE BASED LOAD CELL
  • Supply Ability 10000 Per Month
  • Theory Resistance Sensor
  • Unit of Measure Piece/Pieces
  • Unit of Price Piece/Pieces
  • Usage INDUSTRIAL
  • Voltage 10VDC-Maximum 15 VDC Volt (v)

ADI S TYPE LOADCELL AST-221 is a ultra high accuracy S-beam load cell suitable for both tension and compressionmodes.

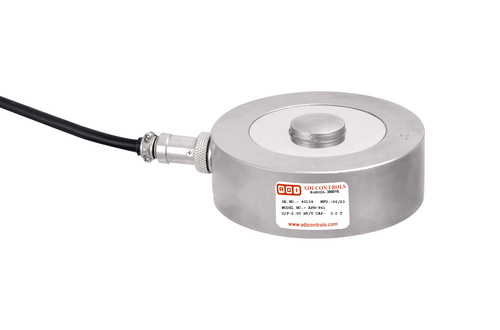

ADI BUTTON TYPE PAN CAKE LOADCELL APB-961

Price: 15000 INR /Piece

  • Compensated Temperature 10 To 60 Celsius (oC)
  • Delivery Time 7 Days
  • Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Minimum Order Quantity 01
  • Price 15000 INR
  • Product Type BUTTON TYPE PAN CAKE LOADCELL
  • Supply Ability 150000 Per Year
  • Theory Resistance Sensor
  • Unit of Measure Piece/Pieces
  • Unit of Price Piece/Pieces
APB-961 is a pan cake button type load cell. Different types of capacity are available from 50KGF to 30TF. Applications for this load cell are compression testing, tablet hardness testing, impact force testing, low profile floor scale, tank & silo weighing, robotics & automation.

ADI THREAD TYPE PAN CAKE LOADCELL APT-961

Price: 15000 INR /Piece

  • Application Applications for this load cell are compression testing, tablet hardness testing, impact force testing, low profile floor scale, tank & silo weighing, robotics & automation.
  • Capacity 50KGF to 30TF
  • Color STAINLESS STEEL SS-17/4 PH
  • Compensated Temperature 10 To 60 Celsius (oC)
  • Delivery Time 1 Week
  • Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Material SS 17-4 PH material.
  • Minimum Order Quantity 01
  • Output Analog Sensor
  • Payment Terms Cash Advance (CA), Cash in Advance (CID)
  • Price 15000 INR
  • Product Type THREAD TYPE PAN CAKE LOADCELL
  • Supply Ability 150000 Per Year
  • Theory Resistance Sensor
  • Unit of Measure Piece/Pieces
  • Unit of Price Piece/Pieces
  • Usage Applications for this load cell are compression testing, tablet hardness testing, impact force testing, low profile floor scale, tank & silo weighing, robotics & automation.
ADI Pan Cake Loadcell APT-961 is designed for tension & compression force measurements. It has wide range from 50kgF to 450TF. Available in Alloy Tool Steel & SS 17-4 PH material.

ADI ALUMINIUM SINGLE POINT LOAD CELL ASP-671

Price: 800 INR /Piece

  • Application APPLICATIONS :Table top scales, Counting and postal scales, Check weighers.
  • Capacity 3 KGF to 80 KGF
  • Compensated Temperature 10 To 60 Celsius (oC)
  • Delivery Time 1 Week
  • Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Material ALUMINIUM
  • Minimum Order Quantity 01
  • Output Analog Sensor
  • Payment Terms Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID)
  • Price 800 INR
  • Product Type SINGLE POINT ALUMINIUM LOAD CELL
  • Supply Ability 150000 Per Year
  • Theory Resistance Sensor
  • Unit of Measure Piece/Pieces
  • Unit of Price Piece/Pieces
  • Usage APPLICATIONS :Table top scales, Counting and postal scales, Check weighers.
ASP-671 is an economical, low profile table top load cell. APPLICATIONS :Table top scales, Counting and postal scales, Check weighers.
KEY FEATURES : Low Profile design, Supports 300 x 300mm platform size.
